| 최소 주문 수량 : | 1pcs | 포장 세부 사항 : | 254 × 90 × 210 |
|---|---|---|---|
| 배달 시간 : | 7 주 | 지불 조건 : | L/C, D/A, D/P, T/T, 웨스턴 유니온 |
| 공급 능력 : | 5000PCS/MONTHS |
| 원래 장소: | 중국 | 브랜드 이름: | MF |
|---|---|---|---|
| 인증: | CCC, CE, EMC, ETL, GS, RoHS, SAA | 모델 번호: | MF-LI-B2-D |
|
상세 정보 |
|||
| 광원: | ~ 주도의 | 사용 가능한 색상: | 빨간색 (다른 색상은 선택 사항입니다 |
|---|---|---|---|
| 강도: | ≥32.5cd (유형 B), 다른 선택적 (10cd, 100cd 등) | 수평 출력: | 360 |
| 수직적 격차: | ≥10 | 순간 특성: | 꾸준히 굽기/20/30/60 조절 가능 |
| 워킹 모드: | (다른 방식을 정맥에 주사하고 지지하는 것은 선택적) | LED 삶: | 옵션으로서의. LED Life Experience (시간)> 100 |
| 동작 전압: | DC (48VDC) &AC(110-240VAC) 또는 다른 사람 | 힘: | 5W |
| 회로보호: | 통합됩니다 | 시체 재료: | 폴리카보네이트 |
| 원료: | 알루미늄을 주조하기 | ||
| 강조하다: | UV-Resistant Aviation Obstruction Light,Adjustable Aviation Obstruction Light |
||
제품 설명

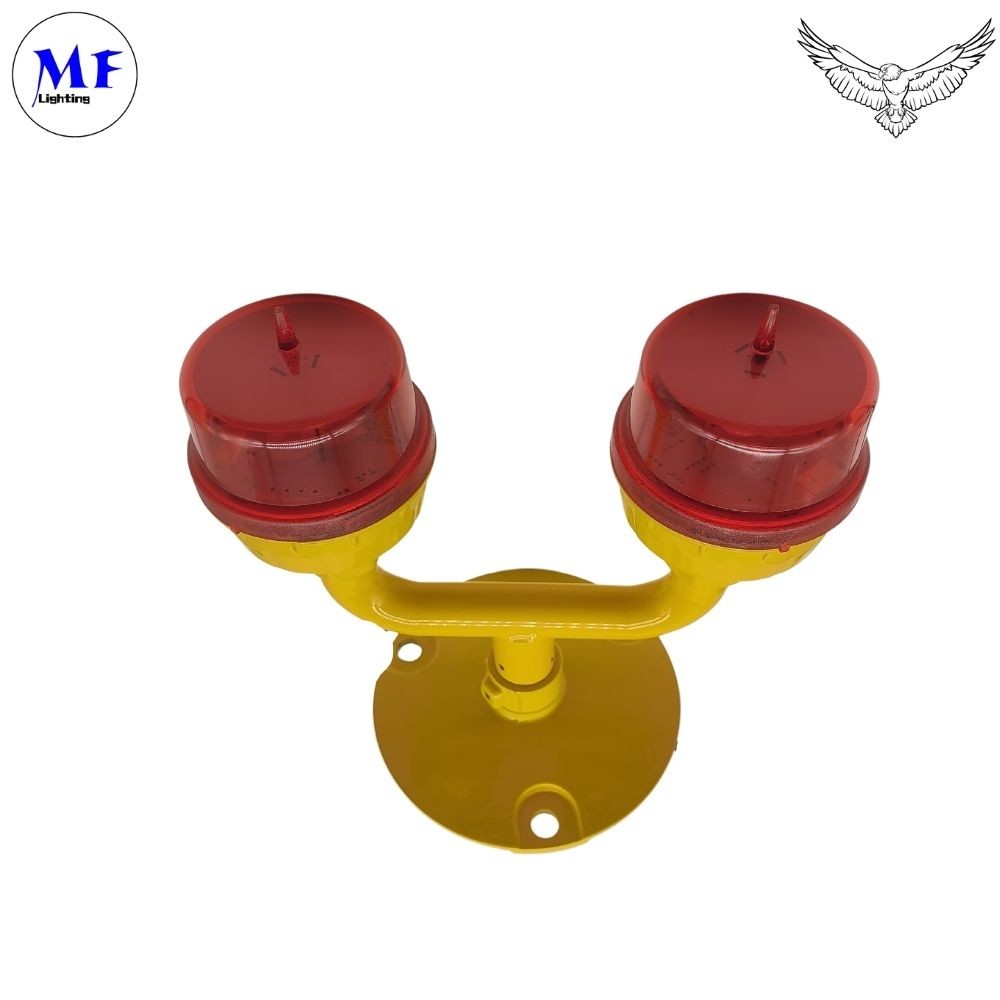

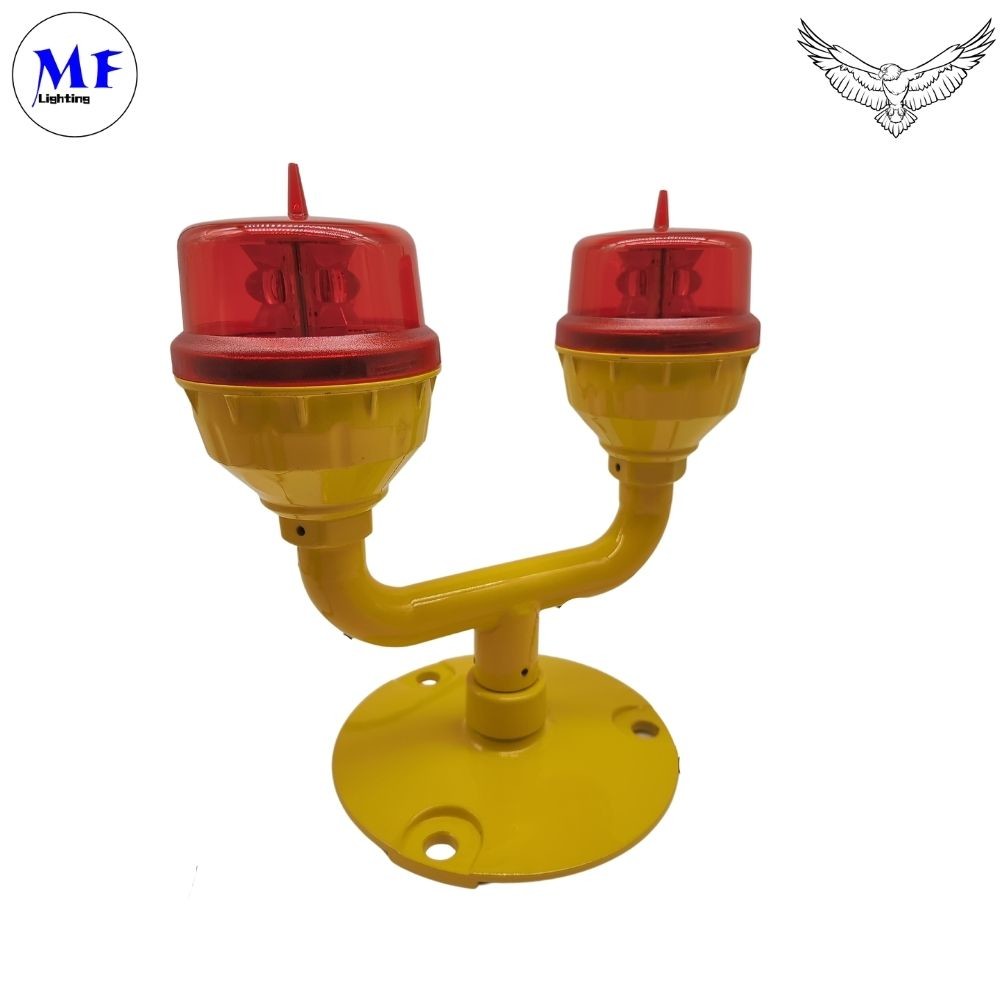

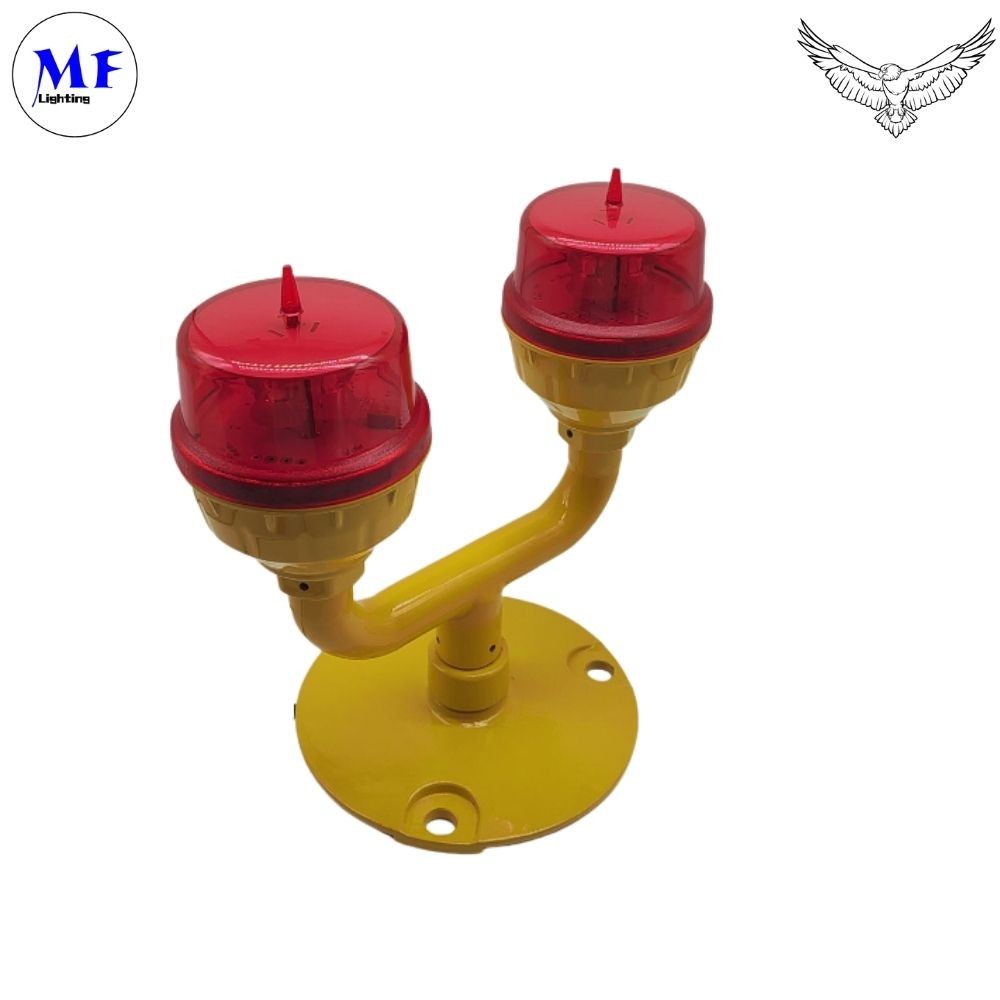

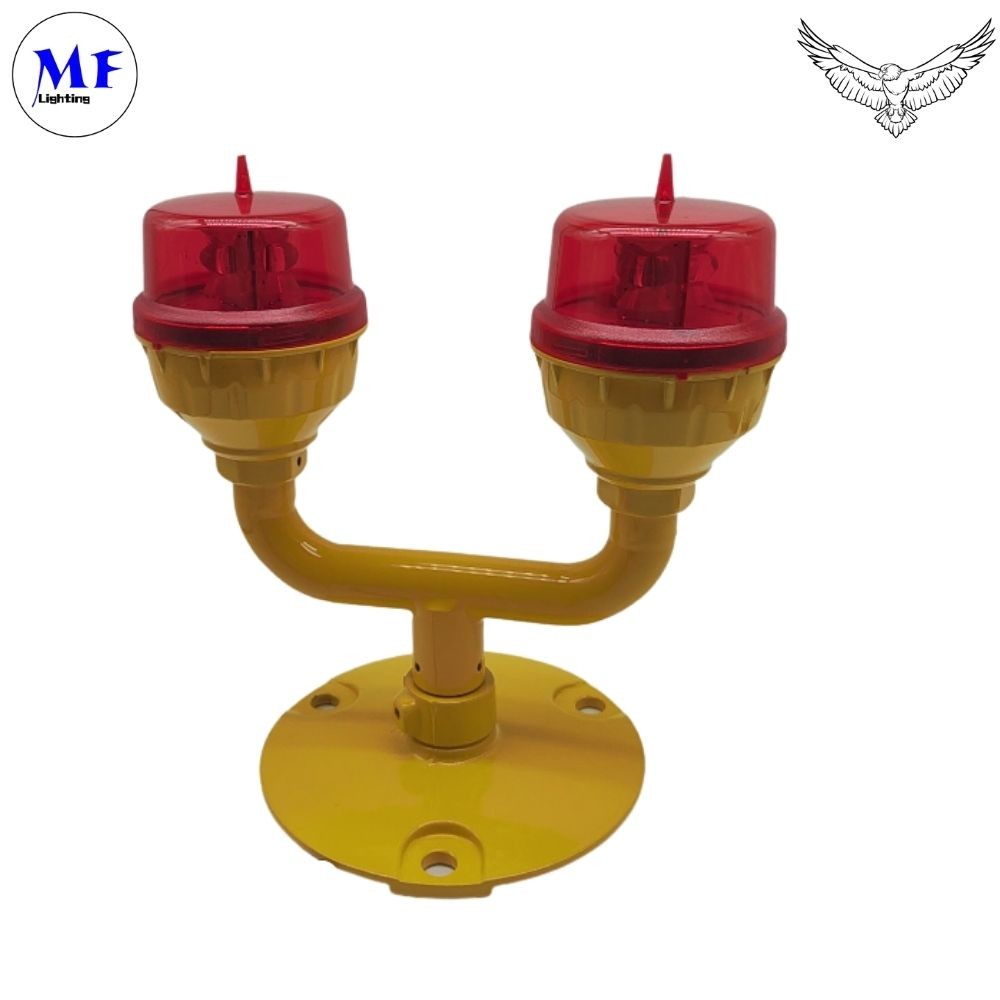

Main-Standby Adjustable Wide Voltage Input UV-Resistant Polycarbonate IP66 Low-Intensity Dual-Lamp Aviation Obstacle Obstruction Light For Bridge
Features:
1. High reliability
Automatic switching of main and backup lamps to ensure continuous marking.
Lightning protection, in accordance with IEC standard.
Integrated circuit protection against abnormalities.
2. Strong environmental adaptability
IP66 waterproof rating.
Operating temperature -40ºC to 65ºC, storage temperature -55ºC to 70ºC.
Resistant to wind speed up to 240km/h.
3. Flexible Design
Support DC48V and AC110-240V power supply.
Built-in light control, automatic switching.
Multiple mounting methods for ease of use.
Key Advantages:
1. High Reliability
Main & standby mode ensures continuous operation.
Built-in surge protection.
Long LED life (>100,000 hours).
2. Durability
IP66 waterproof rating.
UV-resistant polycarbonate cover.
Corrosion-resistant die-casting aluminum base.
3. Adaptability
Dual power supply (DC & AC).
Automatic day/night operation.
Optional GPS sync and solar power.
| Light Source | LED |
| Available Colors | Red (Other color is optional) |
| Intensity (cd) | ≥32.5cd (type B), others optional (10cd, 100cd, etc) |
| Horizontal Output (degrees) | 360 |
| Vertical Divergence (degrees) | ≥10 |
| Flash Characteristics | Steady-burning/20/30/60 adjustable |
| Working Mode | Main & stand by (other modes are optional) |
| Operation Mode | Dusk-to-dawn Automatically as standard. 24 hours operation as option. |
| LED Life Experience (hours) | >100,000 |
| Operating Voltage | DC(48VDC) & AC(110-240VAC) or others |
| Power (W) | 5 |
| Electrostatic | IEC61000-4-2 Contact discharge 8kV |
| Circuit Protection | Integrated |
| Body Material | Polycarbonate |
| Base Material | Die-casting aluminum |

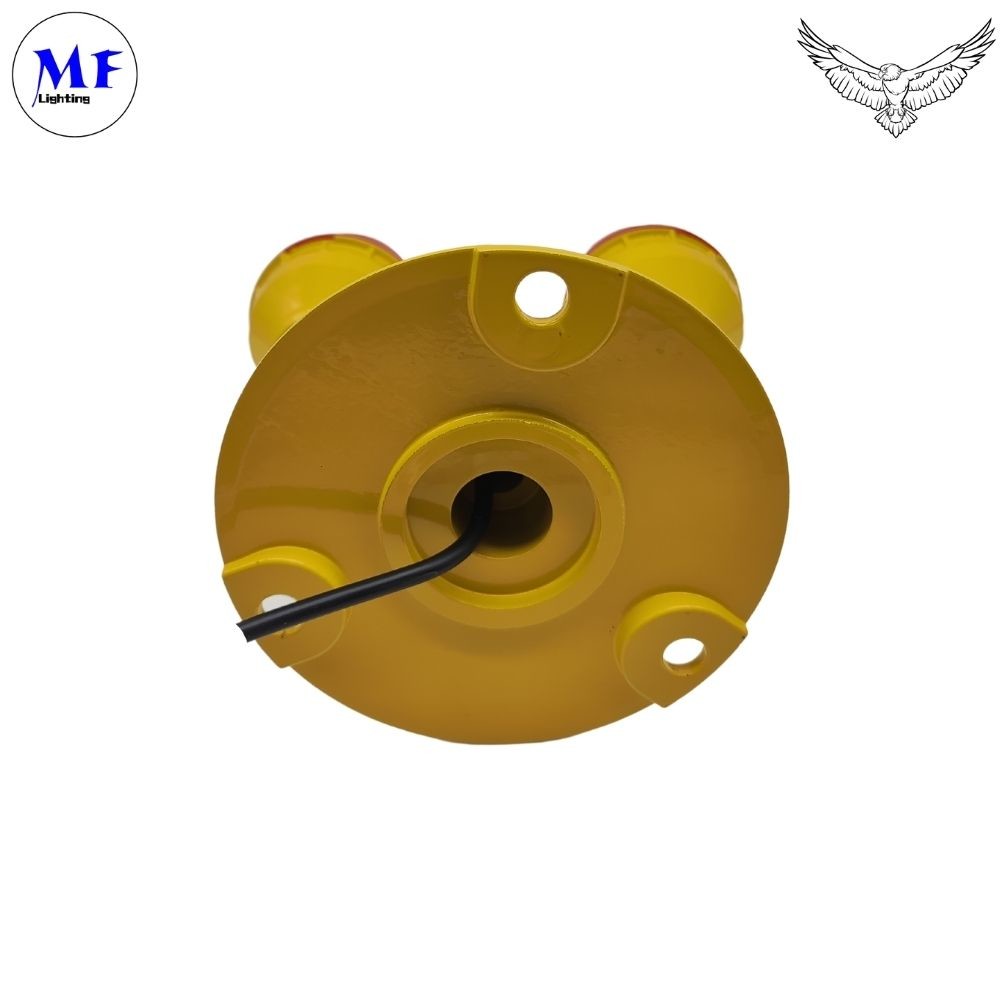

| Mounting | 3/4 inch pipe thread or D140mm×M10*3 |
| Dimension (mm) | 254×90×210 or 254×165×250 |
| Weight (kg) | 1.5 or 2 |
| Product Life Expectancy | 10 years plus |
