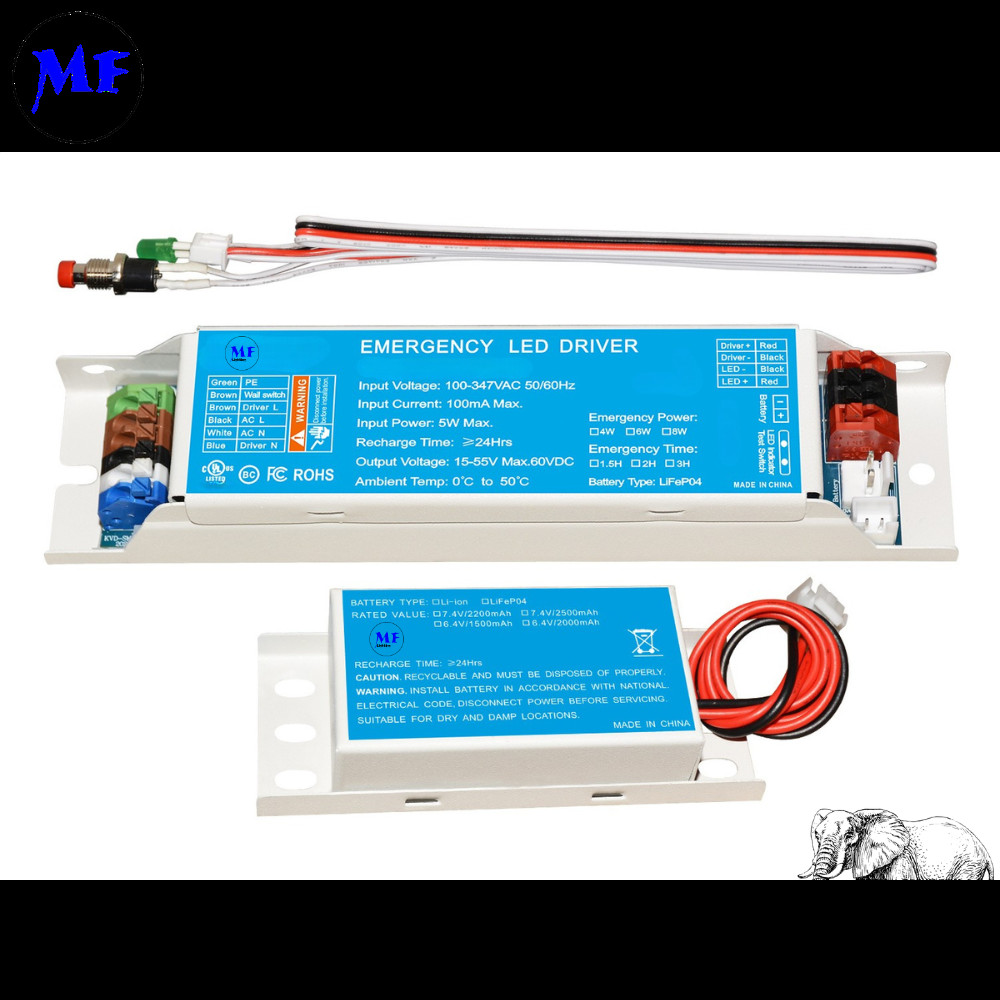

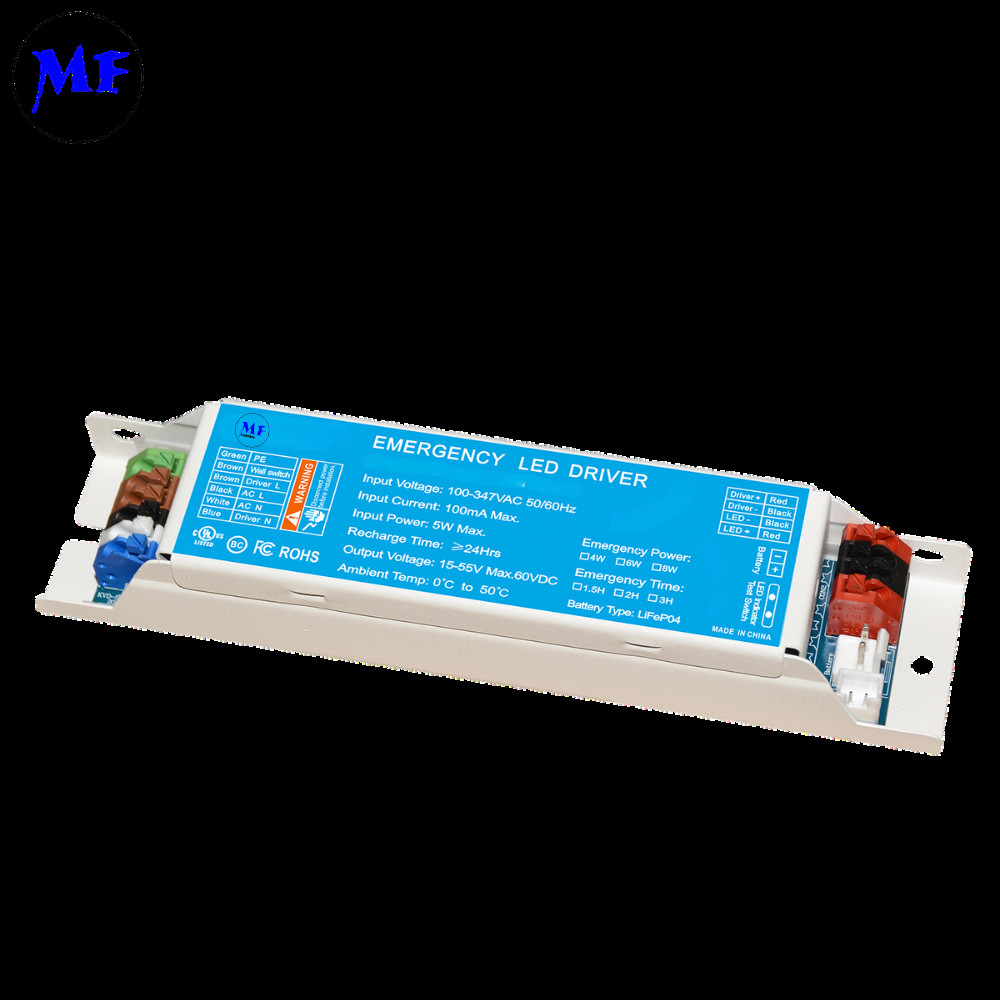

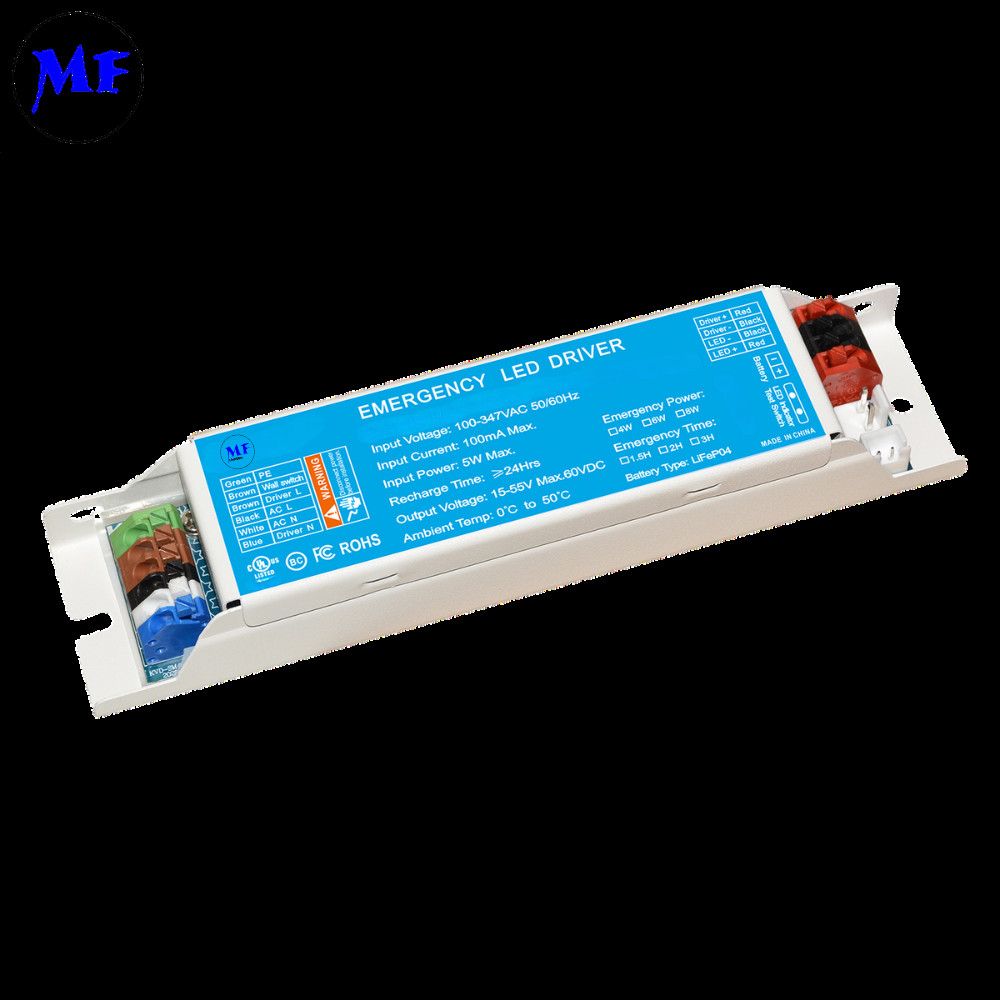

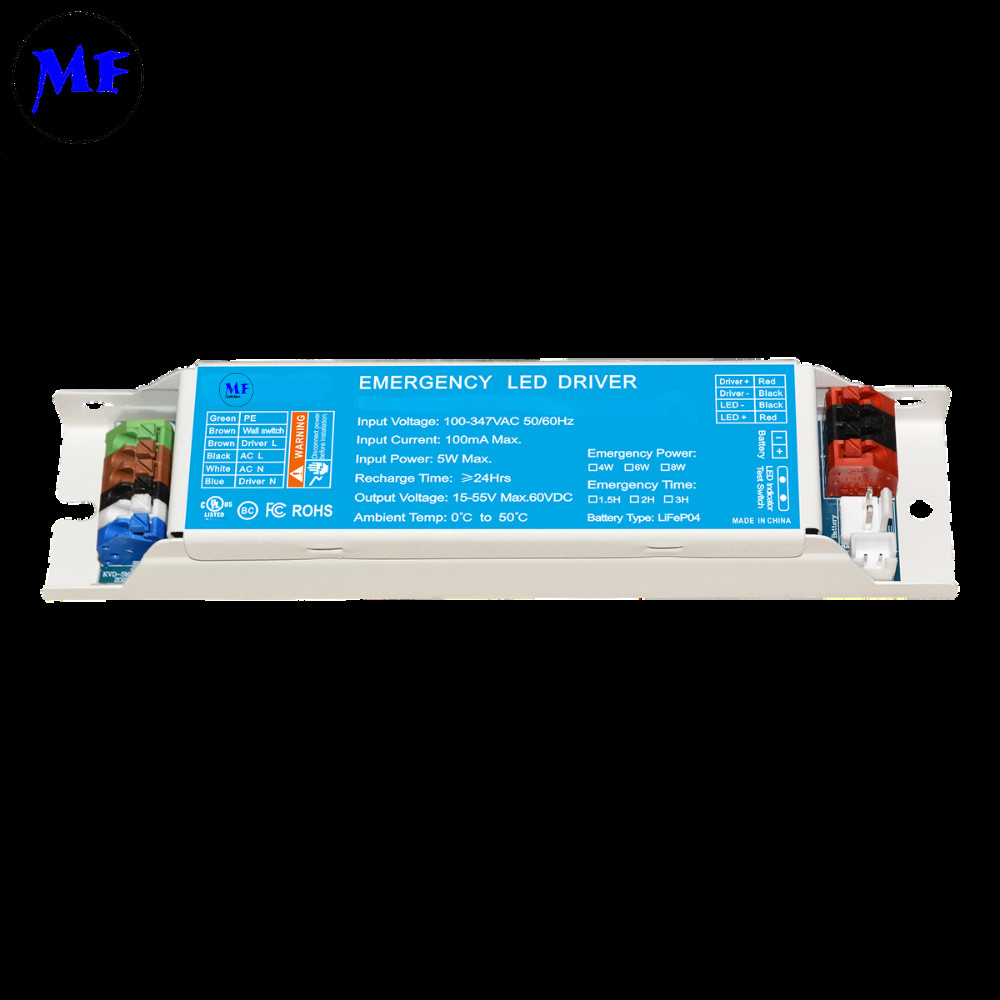

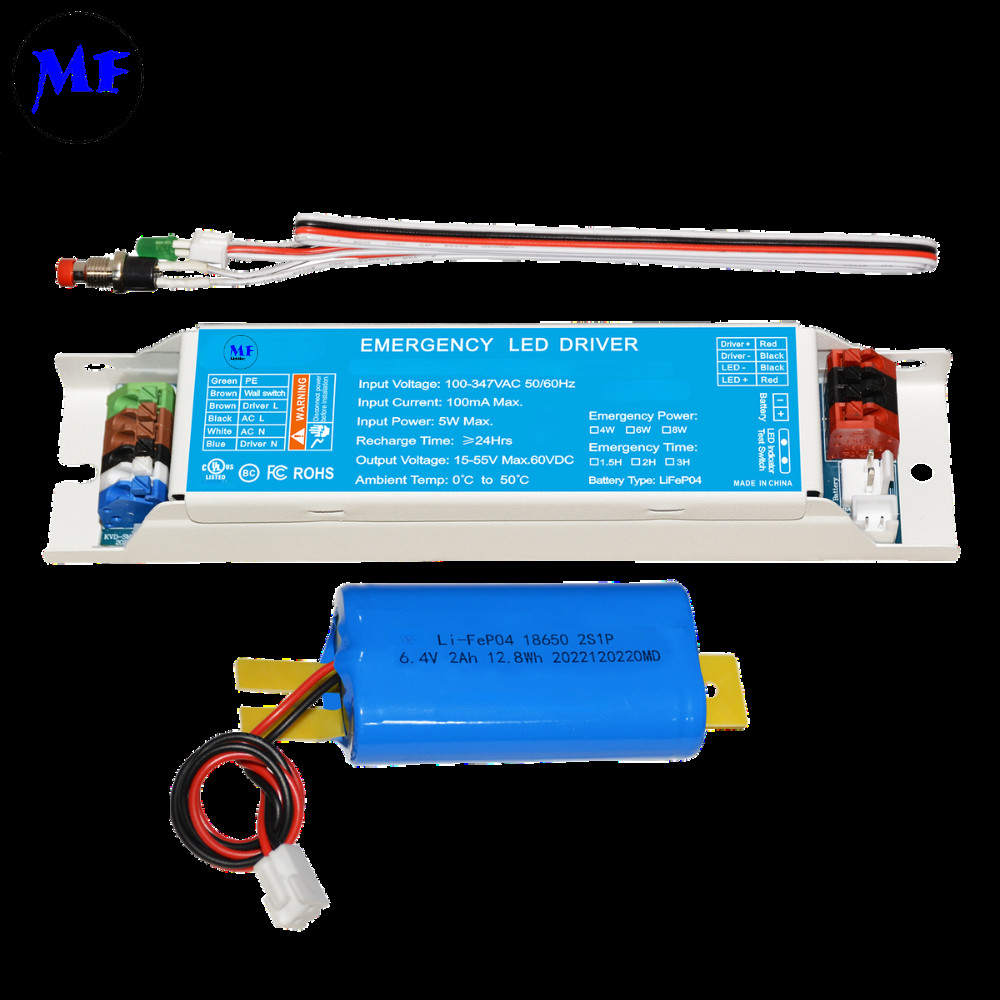

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast with Auto-Test 5-Year Warranty

최소 주문 수량 : 1pcs 포장 세부 사항 : 185*38*24.5mm
배달 시간 : 7 주 지불 조건 : L/C, D/A, D/P, T/T, 웨스턴 유니온
공급 능력 : 5000PCS/MONTHS
원래 장소: 중국 브랜드 이름: MF
인증: CE, RoHS 모델 번호: MF-SM-XXW-YYY-4W

상세 정보

입력 전압: 100-347vac 50/60Hz 입력 전류: 100mamax
입력 전원 평가: 최대 5.0W 배터리 충전 전류: 250mA
출력 전류 및 전압: 15-55VDC/60-240VDC 충전 시간: 24Hrs
방전시정수: 90mis
강조하다:

2000-Cycle LED Emergency Driver

,

Smart-Protected LED Emergency Driver

제품 설명

Factory Price Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast with Auto-Test 5-Year Warranty

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 0

Features:

1. Triple safety protection

Over-charging/over-discharging/short-circuit protection

UL924/CSA certification

Automatic quarterly test

2. Ultra-long life power supply

100-347V wide voltage input

2000 cycles lithium iron phosphate battery

4W dual voltage output

3. Intelligent and convenient management

Multi-colour LED status indication

One button 10 seconds emergency test

5 years warranty



Key advantages:

1. Safe and Reliable

Comply with CSA, UL and other safety standards.

The battery is protected against over-charging, over-discharging and short-circuiting, and complies with RoHS standards.

Provide 5-year warranty.

2. Strong performance

Adopting 2000mAh Li-Fep04 battery, the cycle life is up to 2000 times.

Emergency lighting time ≥ 1.5 hours.

Charging time ≥24 hours, stable charging.

3. convenient operation

LED indicator shows the status intuitively.

Automatic quarterly self-test ensures reliable operation.

Test switch is easy to operate, convenient for daily inspection.

Specifications

Universal Input Voltage 100-347Vac 50/60Hz
AC Input Current 100mA max.
AC Input Power Rating 5.0W max.
Battery Charging Current 250mA
Charging Time ≥24Hours
Output Current and Voltage 15-55VDC/60-240VDC
Emergency Time ≥1.5H
Battery Li-Fep04 2000mAh-6.4V
Output Power 4W
Full Warranty 5 Years
Temperature Rating Ambient Li-Fep04 0°C to 60°C (32°F to 104°F)

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 1

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 2

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 3

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 4

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 5

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 6

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 7

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 8

Emergency LED Driver 2000-Cycle 4W Wide-Voltage 100-347VAC Smart-Protected LiFePO4 Powerpack Panic Light Ballast  with Auto-Test 5-Year Warranty 9
